ACL TCAM Estimator
Project TCAM consumption for ACL configurations before you deploy them.

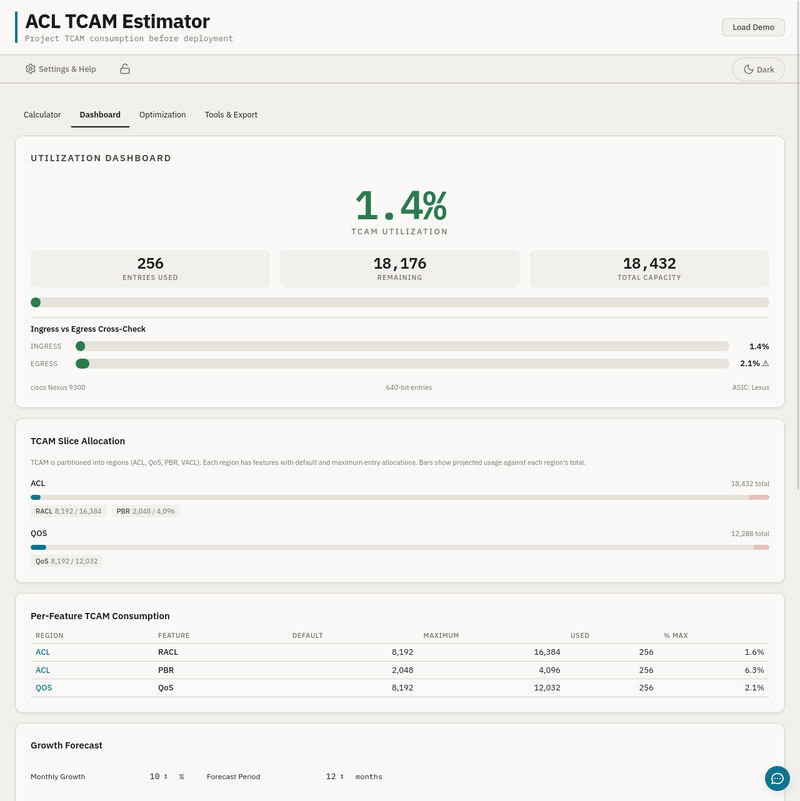

Model TCAM utilization for ACL policies on network switches. See projected consumption, headroom, and capacity risk before deploying, and get optimization suggestions to reduce footprint.
What It's Great For
Common scenarios where ACL TCAM Estimator shines
Pre-deployment validation
Check if a new ACL policy will fit on your switch before pushing it to production, avoiding outages.
Capacity forecasting
Project how many months until your current ACLs exhaust TCAM, and plan hardware upgrades.
Policy optimization
Identify wasteful rules and get concrete suggestions to reduce TCAM footprint without changing security posture.
Platform migration planning
Compare TCAM consumption across different switch models to choose the right hardware for your policy.
Compliance auditing
Generate detailed breakdowns of TCAM usage per rule for audit trails and change management.
Quick sanity checks
Use simple mode to quickly estimate if a rule count is feasible on a given platform during design discussions.
Features
What ACL TCAM Estimator can do for you
Multi-vendor ACL parsing
Paste Cisco, Juniper, or Arista configs and auto-detect the vendor for accurate TCAM expansion.
Platform-aware estimation
Choose from 10 switch profiles with real ASIC capacities, entry widths, and double-wide IPv6 support.
Optimization insights
Detect shadowed rules, anti-patterns, and suggest compression or prefix aggregation to reclaim TCAM entries.
Capacity planning
Forecast growth runway, compute rule budgets, and compare platform migrations to stay ahead of capacity.
Simple quick estimates
Get a fast utilization check with just ACE count and mask complexity, no config needed.
Export and share
Export results as JSON, CSV, or CLI commands for documentation and team review.
All Features
- Simple estimation (ACE count × mask complexity)
- Advanced estimation from pasted ACL configs
- Auto-detect vendor (Cisco, Juniper, Arista)
- Manual rule builder
- 10 switch platform profiles with real capacities
- IPv4 and IPv6 support
- Ingress and egress direction selection
- TCAM entry expansion per ACE
- Utilization percentage and headroom gauge
- Risk level assessment
- Efficiency score
- Anti-pattern detection
- Shadow rule detection
- Rule reordering evaluation
- Prefix aggregation suggestions
- Port normalization suggestions
- Compression suggestions
- Shared policy recommendations
- Waste ledger (reclaimable TCAM)
- Growth runway forecasting
- Rule budget calculation (max ACEs for target utilization)
- Platform migration comparison
- Migration runway comparison
- Export to JSON, CSV, CLI commands
- Explainability panel (why an ACE consumes X entries)
- Object group expansion
- Bidirectional policy multiplier
- TCP flags complexity
- Protocol width awareness
- Shared-term deduplication estimation
- Demo datasets (Quick Estimate and Full ACL Configs)
- Keyboard shortcuts
- App lock with password protection
- Feedback form
Integrate
Connect programmatically via the public API or MCP server
https://acltcamestimator.codecide.net/api Use this base URL for API requests.
Interactive API Docs →https://acltcamestimator.codecide.net/mcp Add this URL to your MCP client (Claude, Cursor, etc.)
View MCP docs →Professional services
Made to fit.
If ACL TCAM Estimator is almost what you need, we can close the gap. Branding, data, integrations, infrastructure, or deeper customizations.
No commitment. We'll figure out what makes sense.
ACL TCAM Estimator is free to use under the MIT license.
ACL TCAM Estimator is provided for estimation and educational purposes only. We make no warranty about the accuracy, completeness, or fitness of its results. Always verify outputs before applying them to designs, decisions, or safety-critical work.
